EPDM

HiFlexTM EP-6900 ( 50 PHR Oil Extended )

HiFlexTM EP-6900 is an oil extended blended terpolymer of ethylene, propylene and diene with 50 Phr oil. HiFlexTM EP-6900 has a very good processability and is compatible for co-curing with conventional diene rubbers. It shows an excellent resistance to oxidation and ozone degradation.

Applications:

Low hardness components, grommets, pipe seals, sheets, and other industrial products.

Supply Form:

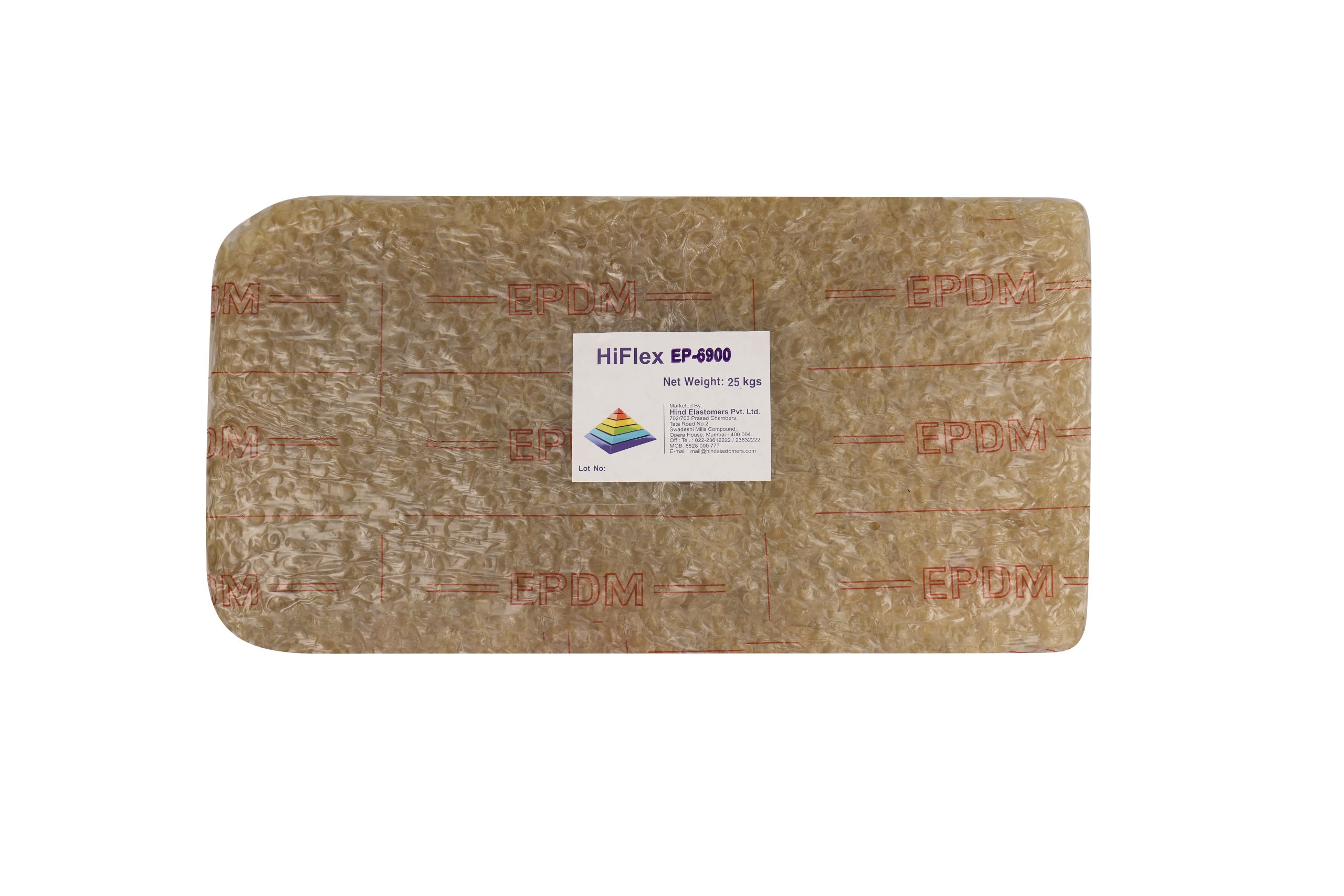

25 kgs bale wrapped in dispersible film.
hiflex6900

RAW MATERIAL PROPERTIES

Properties Nominal Value Test Method
Mooney Viscosity  (ML 1+4 @1250 C) 41 +/- 5 MU ASTM D 1646
Oil Content 50 +/-5 PHR MEK Extraction
Ethylene Content 65 +/-5% Internal Method
ENB Content 6 +/1.5% Internal Method
Moisture Content 0.75% max Internal Method
Ash Content 1.5% max ASTM D297-35
Density 0.86 g/cm 3 ISO 1183
Antioxidant Non-Staining –
Physical Properties*Value
Tensile Strength9.5 MPa
Modulus at 100% EB3 Mpa
Elongation at Break400%
Hardness55 Shore A

* Characteristics determined on a HEPL compound of the following formulation. Press Cure: 10 mins @ 1600 C

HiFlexTM EP6900150
Zinc Oxide5
Stearic Acid1
FEF N-55080
Paraffinic Oil20
Qureacc® TMT0.5
Qureacc® MBT0.5
Qureacc® ZDBC1
Qureacc® MBTS1
Sulfur1.7
HiFlexTM EP-6900 Brochure
