NBR-PVC
NeoPolyTM NV ( NBR & PVC )
NeoPolyTM NV is a blend of NBR & PVC in various ratios. The blend of NBR & PVC maintains individual properties of both NBR & PVC. Vulcanzites based on NeoPolyTM NV exhibit excellent ozone resistance, fuel resistance & abrasion resistance.
Applications:
- Moulding such as auto parts, gaskets, oil seals, safety shoe soles & printing rollers.
- LPG hoses & tubes with flame retardant properties.
- Expanded sheets for insulation.
- Rubber sheets and extruded rubber parts.
Advantages:
- Economical compounds with excellent physical properties.
- Improved fuel resistance automotive application.
- Improved ozone resistance of NBR.
- Improve low temperature resistance.
Packing:

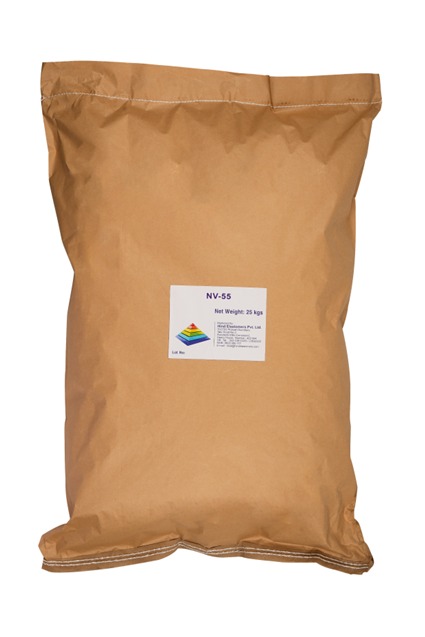

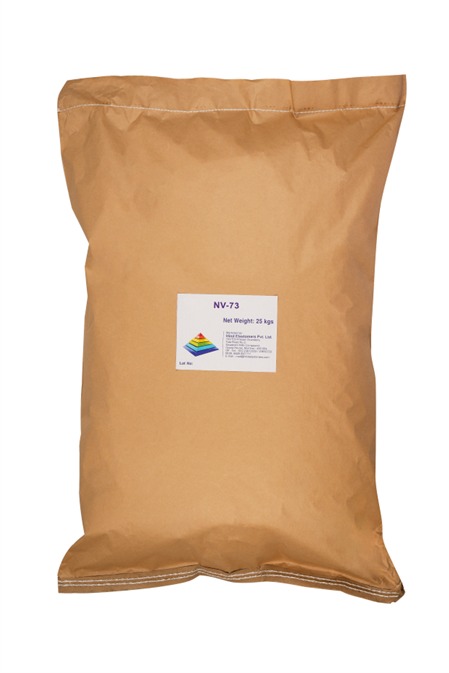

25 kgs coated paper bags
PRODUCT SPECIFICATIONS
| Grade | NV – 73 | NV – 55 |
|---|---|---|
| NBR/PVC Ratio | 70:30 | 50:50 |
| Form | Sheet | Sheet |
| Colour | Yellow | Yellow |
| Mooney Viscosity (ML 1+4@1000 C) | 50 +/- 5 | 60 +/- 5 |
| Specific Gravity | 1.06 | 1.11 |
TEST FORMULATION & TEST RESULTS
| NeoPolyTM NV | 100 | 100 |
|---|---|---|
| Zinc Oxide | 5 | 5 |
| Stearic Acid | 1 | 1 |
| FEF N-550 | 50 | 50 |
| DOP | 10 | 10 |
| Qureacc® MBTS | 1 | 1 |
| Qureacc® TMT | 0.5 | 0.5 |
| Sulfur | 1.5 | 1.5 |
| Total | 169 | 169 |
| Physical Properties – Cure Time 10 min @ 1600 C | ||
| Hardness (Shore A) | 80 | 85 |
| Tensile Strength (MPa) | 16.0 | 17.7 |
| Elongation at Break (%) | 250 | 200 |
| Heat Ageing – 72 hrs @ 700 C | ||
| Change in Hardness (Shore A) | +1 | +1 |
| Change in Tensile Strength (%) | +4.5 | +4.7 |
| Change Elongation at Break (%) | -11.5 | -12.3 |
